Apart from the internationally common railway fastening system like: KPO Rail Fastening System, SKL Clip, E-clip Rail Fastening System and Nabala Clip (Spring Blade) Rail Fastening System, AGICO also offers other widely used fastening systems as the following：
Rail Spike Fastening System
|
Item |
Quantity |
Material |
|
Track/Cut Spike |
5 |
Q235A |
|
Tie plate |
1 |
QT450-10 for casting / Q235 for rolling |
High speed WJ-8 Rail Fastening System
|
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2MnA |
|
Screw spike |
2 |
20MnTiB |
|
Flat washer |
2 |
Q235A |
|
Rail Insulator |
2 |
PA66 |
|
Guide plate |
2 |
Reinforced Nylon 66 (PA66) |
|
Rail pad |
1 |
EVA, or rubber |
|
Tie plate |
1 |
QT450-10 |
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |
|
Rail Adjustable Pad |
2 |
PE |
|
Tie Plate adjustable pad |
2 |
PE |

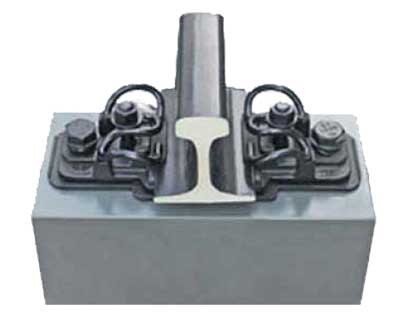

High Speed WJ-7 Rail Fastening System
|
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2MnA |
|
T-bolt nut washer |
2 |
Q235A |
|
Rail Insulator |
2 |
PA66 |
|
Tie plate |
1 |
QT450-10 |
|
Insulated buffer plate |
1 |
Rubber |
|
Rail pad |
1 |
EVA, or rubber |
|
Anchor bolt |
2 |
Q235A |
|
Spring Washer |
2 |
60Si2Mn |
|
Plain washer |
2 |
QT450-10 |
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |

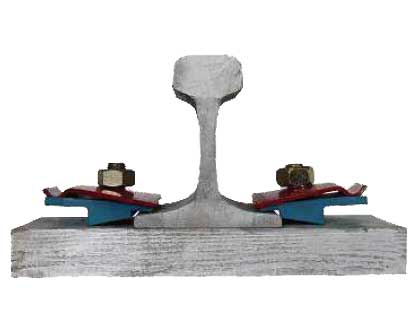

High Speed Type V Fastening System
|
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2MnA |
|
Screw spike |
2 |
20MnTiB |
|
Flat washer |
2 |
Q235A |
|
Space pieces |
2 |
Q235A |
|
Gauge apron |
2 |
Rubber |
|
Rail pad |
1 |
EVA, or rubber |
|
Adjustable pad |
1 |
PE |
|
Plastic dowel |
2 |
HDPE, Reinforced Nylon 66 (PA66) |

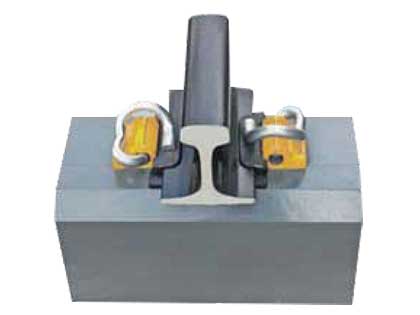

Type IV Fastening System
|
Item |
Rail clip |
Rail insulator |
Rail shoulder |
Rail pad |
|
Quantity |
2 |
2 |
2 |
1 |
|
Material |
60Si2MnA |
PA66 |
QT450-10 |
EVA, or rubber |
Clip III Fastening System
Clip III fastening system applies to 60 kg/m rail of sleepers without shoulders, and it’s a boltless system. It includes rail clips, rail shoulders and insulators.
|
Item |
Rail clip |
Rail insulator |
Rail shoulder |
Rail pad |
|
Quantity |
2 |
2 |
2 |
1 |
|
Material |
60Si2MnA |
PA66 |
QT450-10 |
EVA, or rubber |
Clip II / Clip I Fastening System
|
Item |
Quantity |
Material |
|
Rail clip |
2 |
60Si2CrA |
|
Sleeper screw & nut & washer |
2 |
Q235A |
|
Rail insulator |
2 |
Q235 |
|
Baffle board |
2 |
PA66 |
|
Rail pad |
1 |
EVA, or rubber |
